EASILY INTEGRATED FILTRATION TECHNOLOGY

GreenFumeHood 3.
The most powerful technology in the world is even better suited to your laboratory.

Significant benefits of GreenFumeHood 3 for your laboratory.

Savings

Significant savings due to the connection-free installation and low operating costs.

Safety

Compliance with filtration and containment standards for your safety.

Innovation

The most advanced filtration technology in the world, already incorporated into fume hoods by our 25 installation partners.

Expertise

Over 50 years of research expertise in the field of molecular and particulate filtration.

Performance

Performance of the new generation of high-retention-capacity Neutrodine Unisorb filters.

Ecology

Zero emissions inside and out.

Intelligence

New generation of safer, simpler on-board intelligence.

GreenFumeHood 3 technology.
Chosen by the largest manufacturers
of laboratory furniture.

GreenFumeHood 3 is offered by the largest installers in Europe, Asia, and North America whose clients benefit from their expertise and experience.

3 production sites and 25 installers worldwide

US production site
France production site
China production site
Erlab representative office
Erlab representative office
Erlab representative office
Erlab representative office
Erlab representative office
Erlab representative office
Erlab representative office
Erlab representative office
US production site
Erlab representative office
France production site
China production site
Erlab representative office
Erlab representative office
Erlab representative office
Erlab representative office
Erlab representative office
Erlab representative office
Erlab representative office

GREENFUMEHOOD 3

The most advanced
filtration technology
in the world

Benefits and advantages of GreenFumeHood 3 technology

  • Significant cost savings

  • Enhanced safety

  • Reduced environmental impact

  • High degree of flexibility

  • Optimized laboratory design

GreenFumeHood 3 technology. Optimal filtration and zero emissions.

Neutrodine Unisorb.
The first polyvalent molecular filter
for laboratory gases and vapors.

Fume hood fitted with new GreenFumeHood 3 filtration is popular with the most advanced laboratories and rivals classic fume extraction hood for effectiveness.

The result of the latest innovations from Erlab, GreenFumeHood 3 is fitted with a new generation of filters: Neutrodine Unisorb.

This new technology, developed by our R&D laboratory for over 5 years, has been tested hundreds of times, from the first filtration material trials right up to the performance evaluation of these new filters in real-life situations.

Neutrodine Unisorb greatly increases the retention capacity for most vapors emitted by laboratory procedures.

These improvements are significant for the molecules known to be the most difficult to retain with classic activated carbon filters, namely polar VOCs with low molar mass and boiling points.

This research was the subject of 2 new patents filed by Erlab:

  • Filter anti-settling system: US patent number 7,563,301

  • Neutrodine Unisorb filter: US patent application number 12/465,434

Advantages of Neutrodine Unisorb filtration.

Advantages of Neutrodine Unisorb filtration:

  • Ability to simultaneously handle solvents, acids, and bases with the same filter.

  • Unprecedented retention capacity.

  • Unique formulation without carbon blend.

  • No heavy metal impregnation.

  • Neutrodine Unisorb Filter performance tested in accordance with the AFNOR NF X15-211 standard.

Improved performance compared to classic filters.

Cyclohexane

50

Acetone

50

Ethanol

280

HCI

60

Ammonia

50

Isopropanol

90

And over 700 other chemicals filtered !

And over 700 other chemicals filtered !

Neutrodine Unisorb. Polyvalent filtration technology at the heart of GreenFumeHood 3.

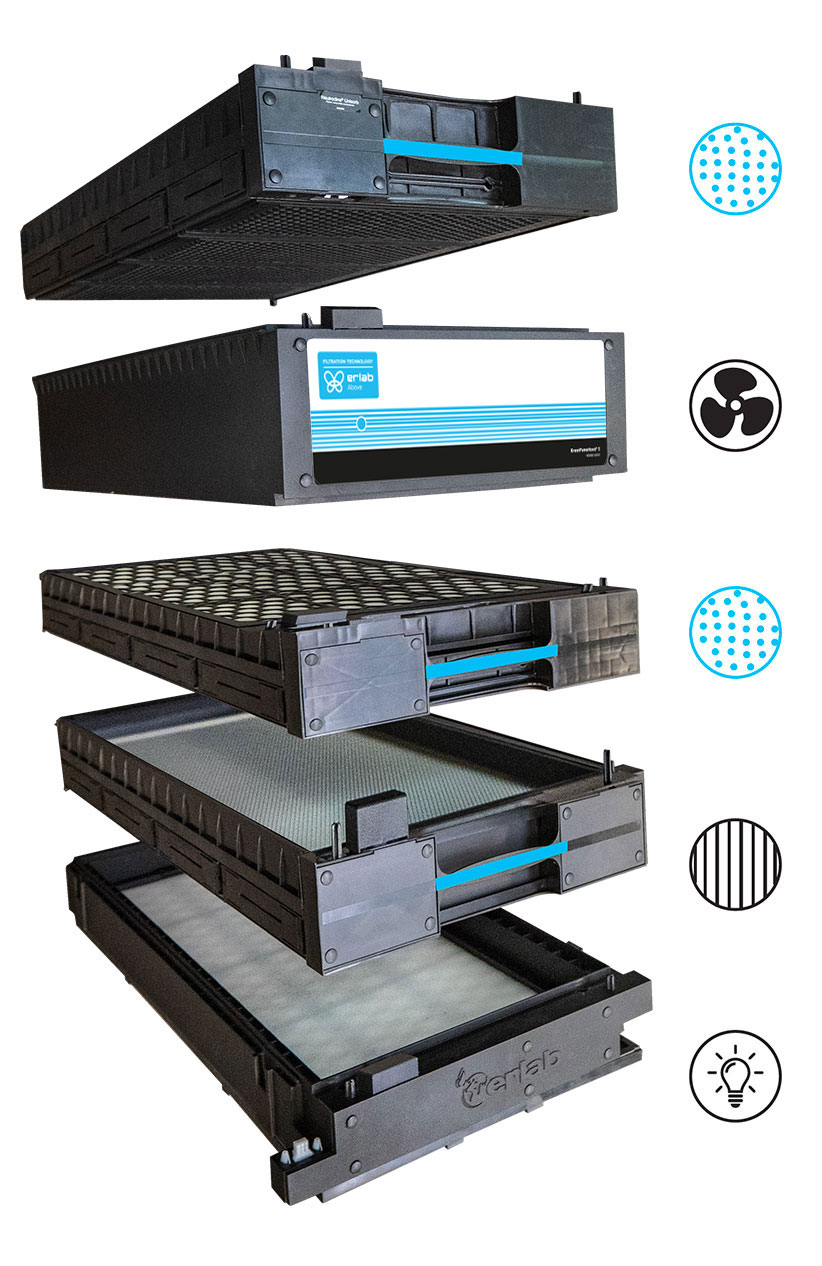

The GreenFumeHood 3 filtration column.
A modular column suited to all your present and future
laboratory needs.

Filtre intelligent :

Une puce électronique embarquée permet une optimisation de sa gestion lors de son utilisation

Capteur de performance de filtration :

Capteurs solvants, acides, formaldéhyde

Poignées intelligentes :

Reconnaissance automatique du filtre et meilleure prise en main.

Lame / Gouttière :

Le système lame / gouttière garantie l’étanchéité entre les deux filtres.

Capteur humidité / température :

Détection de valeurs anormales dans l’enceinte.

Préfiltre :

Détection de valeurs anormales dans l’enceinte.

The GreenFumeHood 3 filtration column can be adjusted according to your needs.

The GreenFumeHood 3 filtration column can be adjusted according to your needs.

Ability to handle both liquids and powders.

Quick and simple reconfiguration of filtration columns to meet changing needs.

Molecular filter
Fan + detection
Molecular filter
Lighting module
Molecular filter
Fan + detection
Molecular filter
Particulate filter
Lighting module
Particulate filter
Molecular filter
Fan + detection
Molecular filter
Lighting module

Simple and intuitive communication methods with Smart technology.

Module de commande Smart
Simplified access (PC, Tablet, etc.)

Connection to command module via wifi or ethernet.

Simpler and safer Smart alert system

Alerts via light and sounds pulses. U.S. Patent: D10, 528, 014

Simplified and intuitive commands

Touch screen icons.

Smart Command.
Free yourself from operational constraints with this new control module.

Activate the power of Smart Technology.

This communication interface allows operators, through simple and intuitive use, to focus all their attention on the essential: handling chemicals.

Using light and sound signals, Smart technology indicates the user’s protection status. Smart Command, included in all our GreenFumeHood 3 filtration packs, is there to alert you with complete simplicity.

eguard 3 filtration et protection

eGuard app for GreenFumeHood 3. The app for remote device monitoring and increased
user safety.

Enjoy the highest level of safety with the new eGuard app for GreenFumeHood 3.

Keep up to date on your laptop wherever you are, thanks to eGuard for GreenFumeHood 3, included in every technology pack. The technology in fume hoods allows you to remotely monitor all your safety settings in real time using the eGuard PC.

Download the eGuard application
for GreenFumeHood 3

GreenFumeHood 3 integration technology packs. Adjustable to the width of your enclosure.

GreenFumeHood 3 integration technology pack M1

Enclosure width
3 feet

Treated air flow
220 m3/h

75W

GreenFumeHood 3 integration technology pack M2

Enclosure width
4 feet

Treated air flow
440 m3/h

140W

GreenFumeHood 3 integration technology pack M3

Enclosure width
5 feet

Treated air flow
660 m3/h

200W

GreenFumeHood 3 integration technology pack M4

Enclosure width
6 feet
Treated air flow
880 m3/h

280W

GreenFumeHood 3 integration technology pack M5

Enclosure width
8 feet

Treated air flow
1100 m3/h

340W

GreenFumeHood 3 integration technology pack M6

Enclosure width
10 feet

Treated air flow
1320 m3/h

400W
