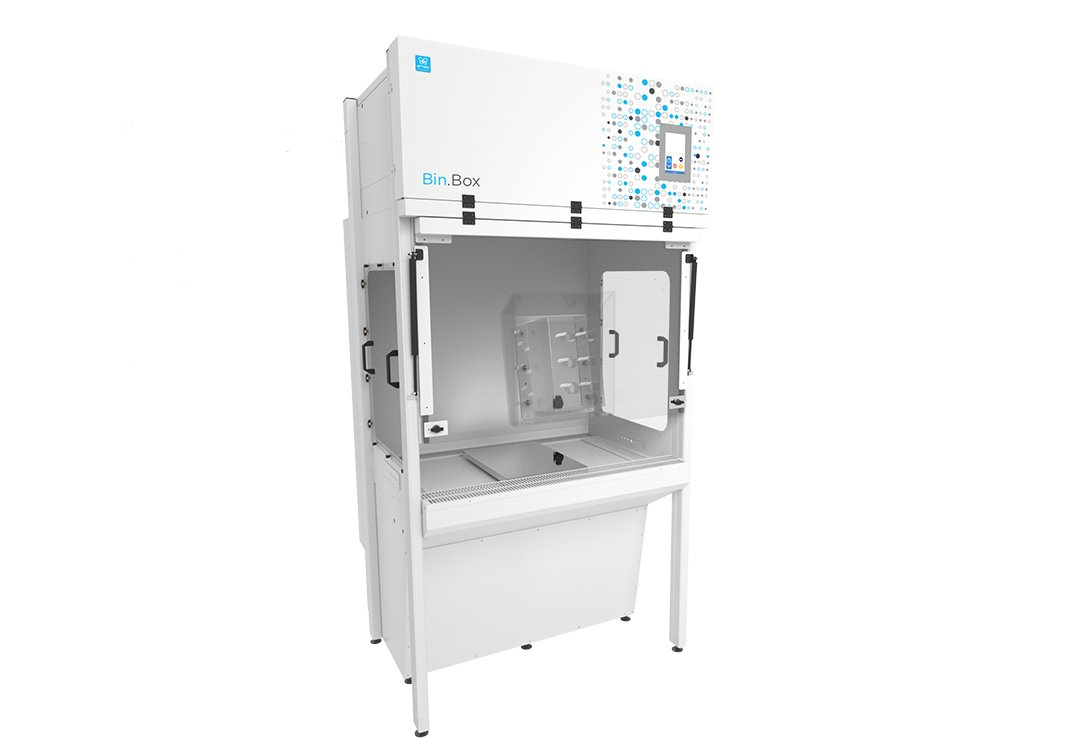

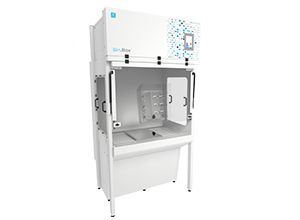

Bin.Box biological enclosures are class 2 laminar flow hoods specially designed to integrate optical equipment such as microscopes, binoculars and stereo microscopes, while providing users with absolute biological safety against the risk of airborne contamination when handling micro-organisms and pathogens.
The Bin.Box front window is fitted with a bellows connection that perfectly fit the binoculars.
Designed based on a safety cabinet, Bin.Box hoods feature HEPA H14 filtration. The air flow filter removes particles from the ambient air before blowing into the workspace (99.995% MPPS in accordance with standard EN 1822-1:2019), protecting the samples handled against the risk of cross contamination. The extraction filter removes particles before extraction into the laboratory. The laminar airflow velocity is 0.35 m/s ± 20% at any point on the work surface. Handling is protected under ISO class 5, in accordance with standard NF EN ISO 14644-1:2015.
Since its creation, Erlab has been committed to designing and producing its products sustainably. Laminar flow hoods feature LED lighting for low energy consumption.
High-efficiency HEPA filtration technology and the strong air barrier on the front of the device guarantee absolute protection for the operator, the samples handled and the environment.
In addition, the device is equipped with a unique, highly efficient ventilation system: filtered air ventilation in the workspace and a second total extraction ventilation system with no air recirculation, creating a very powerful air barrier for maximum operator safety.
Positioned on the right-hand side of the front panel, the touch screen ensures simple, intuitive operation.
The air flow filter removes particles from the ambient air before blowing into the workspace, protecting the samples handled against the risk of cross contamination. The extraction filter removes particles before extraction into the laboratory.
Full opening of the front window, assisted by a cylinder, provides full access to the equipment inside for maintenance operations.
The work surface is equipped with reinforcements to support a load of 250 kg.
Positioned according to your working habits, the bellows connection adapts perfectly to binocular microscope outputs of all brands.
Composed of several layers of stainless steel and silicone insulation to guarantee excellent stability and avoid vibration when handling under the microscope.
Width (mm)
Depth (mm)
Height (mm)
Air flow rate (m3/h)
Internal lighting (Lux)
* To be defined according to your need
Dimensions
Width : *
Depth : *
Height : *
Air flow rate : *
Internal lighting : > 750
* To be defined according to your need
